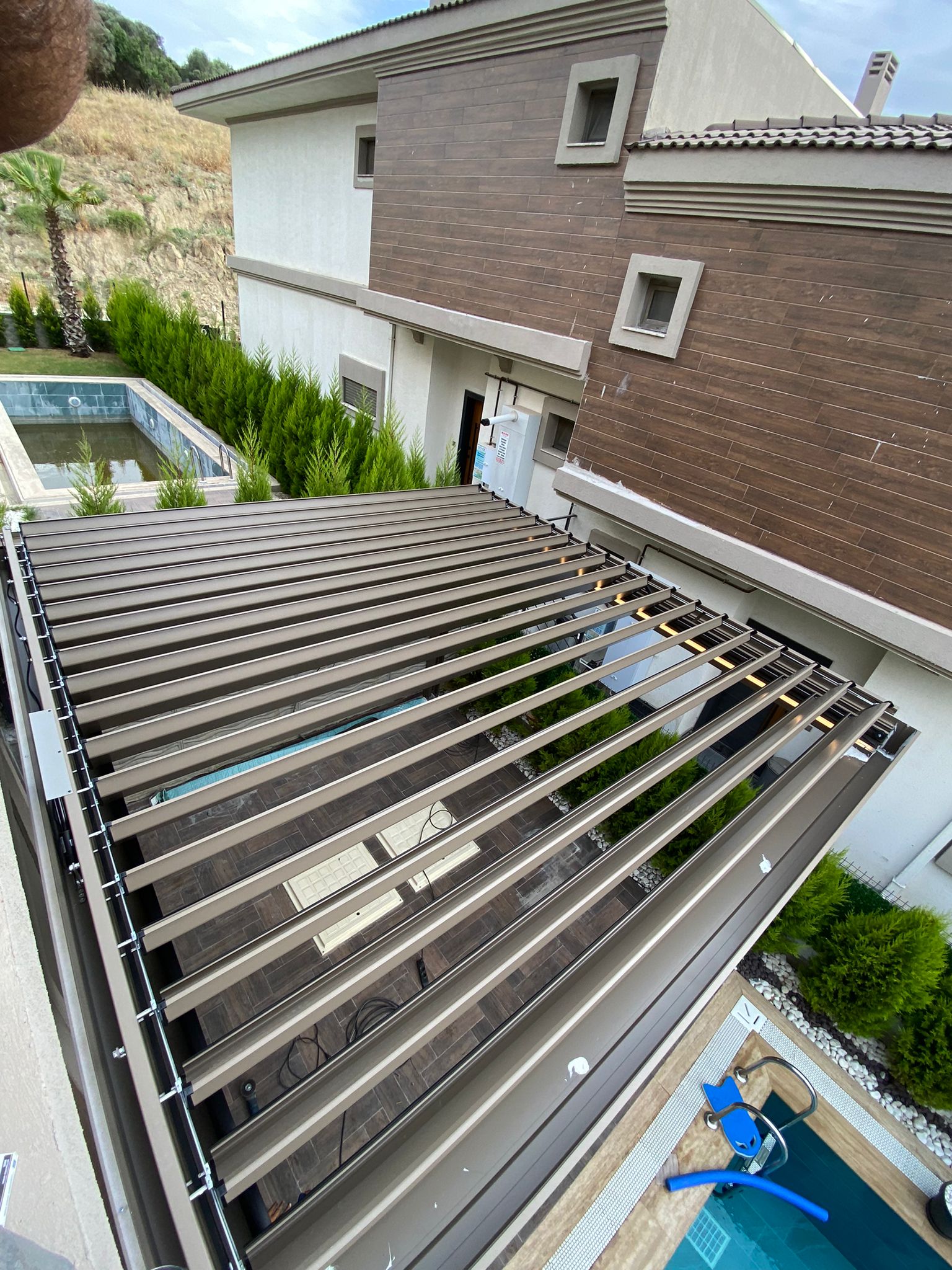

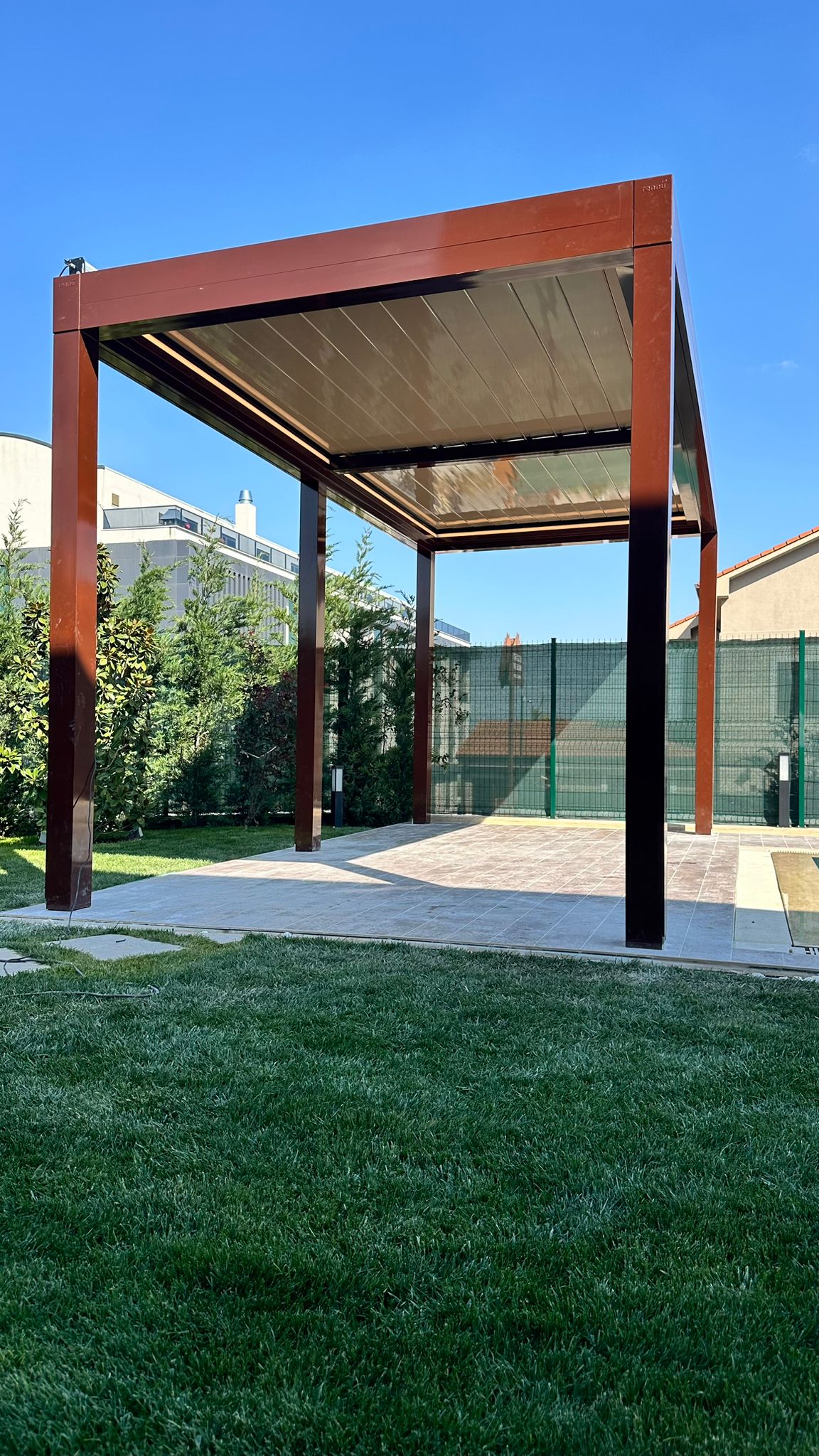

Bioclimatic Retractable Pergola System

Our retractable bioclimatic pergola system is designed for superior functionality, durability, and aesthetic appeal, offering an advanced shading and drainage solution suitable for all weather conditions. Below are the detailed technical specifications:

• Material and Finish:
  • Constructed using high-quality 6063-T6 aluminum profiles with F25 (7580 Brinell Hardness) for exceptional strength and longevity.
  • All aluminum profiles undergo a chroming process before being coated with electrostatic powder paint, ensuring resistance to corrosion and wear.
  • Available in all RAL color options, with additional special texture and exclusive color alternatives for customized aesthetics.
  • Metal accessories are galvanized and coated with electrostatic oven paint for enhanced durability.
• Retractable Mechanism:
  • The system is fully retractable, allowing flexible control over shade and sunlight exposure.
  • Exclusively powered by high-performance Somfy motors, ensuring reliable and smooth operation with a 2-year motor warranty and a 2-year mechanical warranty.
• Structural Design:
  • Each system module comprises vertical and horizontal carrier profiles, with 170×170 mm horizontal main carriers specially designed as 157×240 mm for optimal strength.
  • Engineered to withstand a distributed load of 50 kg + 35 kg/m² and a wind load of 50 kg/m², ensuring robust static properties.

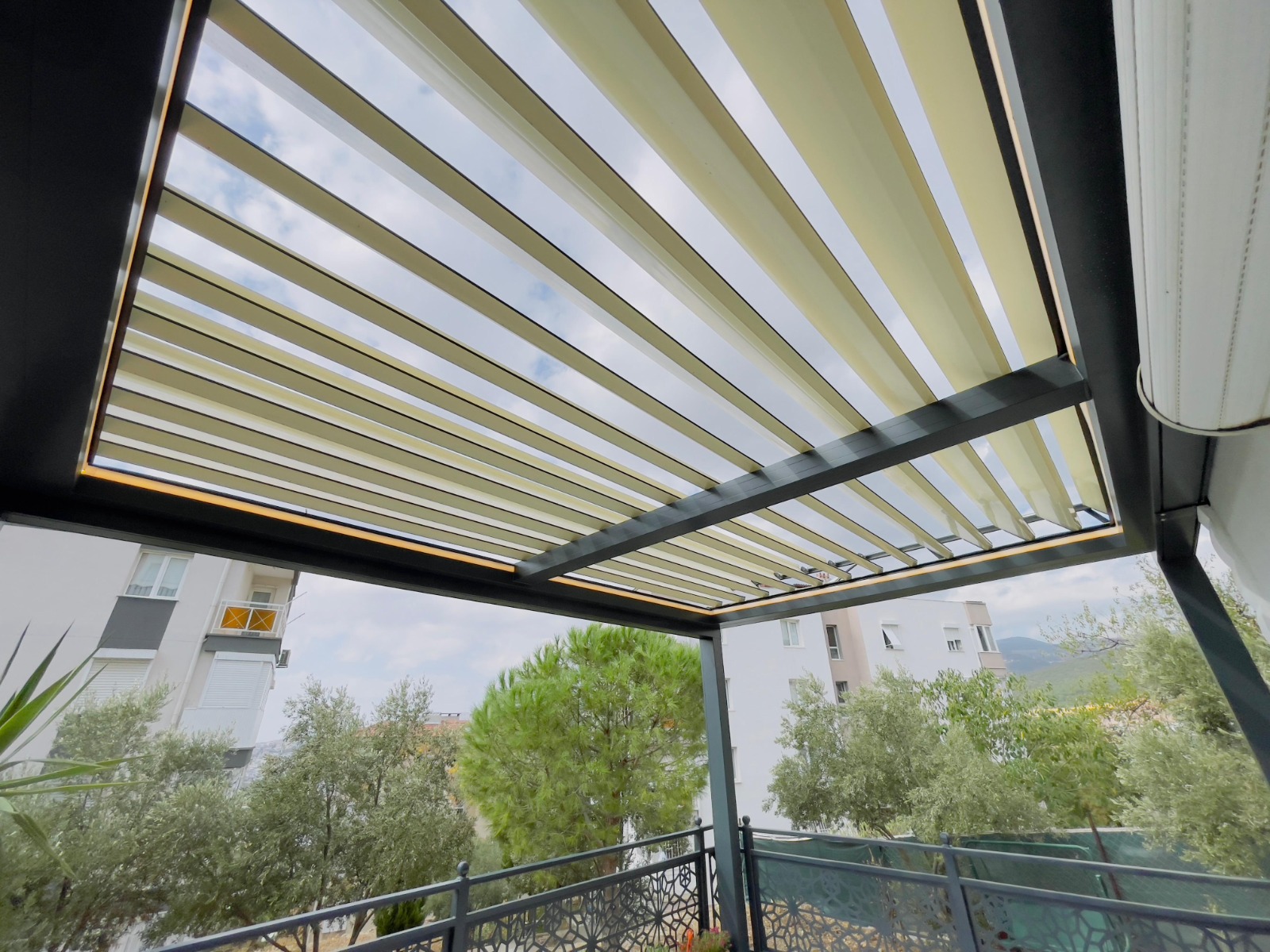

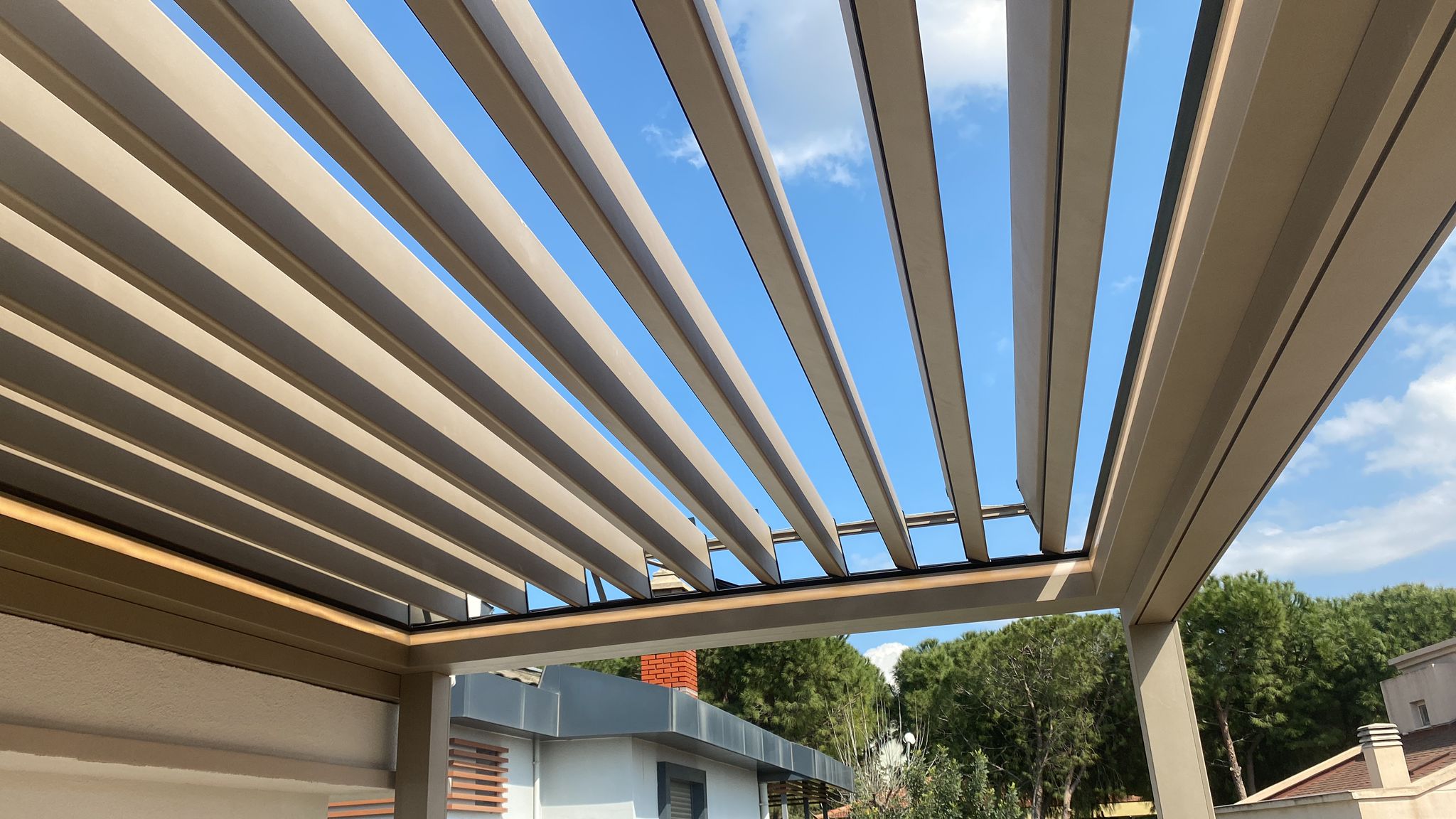

  • Panels can be axially adjusted between 95° and 110° to optimize sunlight control and prevent direct exposure from the facade.
  • Optional polyurethane foam filling inside the lamellas provides enhanced thermal insulation.
• Connection and Fastening:
  • Utilizes chrome (inox) stainless steel screws and bolts for long-lasting, corrosion-resistant connections.
  • Flange application screws are M12x10 jacketed steel dowels or rods with galvanized coating to protect floor insulation.
  • Polyurethane-based neutral silicone is used for gutter fitting assembly, ensuring a secure and watertight seal.
• Water and Dust Management:
  • Features an innovative groove design within the lamellas to prevent dust, water, and debris from accumulating or spilling during movement.
  • Grooves on all four sides of the system eliminate water ingress, even without inclination, providing superior waterproofing.
  • EPDM wick gaskets are used instead of hair wicks for enhanced sealing and durability.
  • The aesthetic water drainage system ensures both functional efficiency and visual appeal, seamlessly integrated into the design.
• Installation and Versatility:
  • Designed for easy installation with no 45° cuts or corners at gutter joints, simplifying insulation and eliminating water vulnerability.
  • Can be installed flat or inclined, depending on project requirements, offering flexible application options.
• Lighting System:

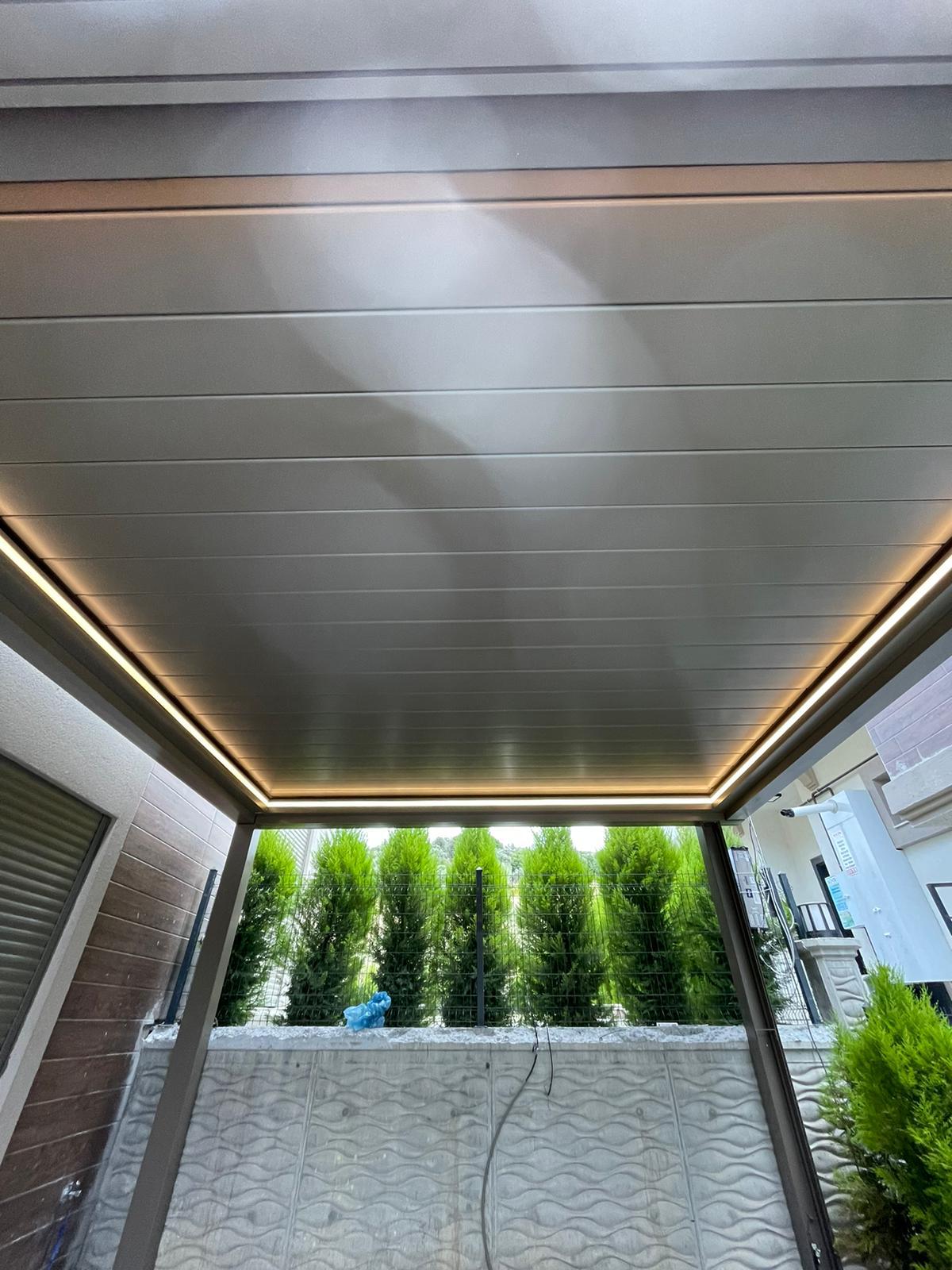

  • Equipped with 12V Samsung silicone LED lighting (isolated) for energy-efficient illumination.
  • Brightness and dimming levels can be effortlessly controlled using a DIMMER remote for customized ambiance.
• Motion System:
  • A robust 966 kg timing belt mechanism ensures smooth and reliable operation between the Somfy motor and the moving components.
• Weather Resistance:
  • Engineered to perform reliably in all weather conditions, offering durability and functionality in diverse environments.
• Aesthetic and Functional Design:
  • The retractable bioclimatic pergola combines cutting-edge technology with a sleek, modern design, providing a superior shading and drainage solution that enhances both outdoor comfort and visual appeal.

This retractable bioclimatic pergola, powered exclusively by Somfy motors, is the ideal choice for those seeking a high-performance, durable, and aesthetically pleasing outdoor solution.
