Guillotine Wipeable Glass Systems

Guillotine wipeable glass systems are designed for ease of cleaning and maintenance, featuring vertically movable glass panels. These systems are ideal for spaces such as balconies, terraces, winter gardens, restaurants, and cafes. The wipeable feature ensures effortless cleaning of both interior and exterior glass surfaces, making them a practical and stylish solution.Key Features

1. Vertical Movement: Glass panels slide vertically, stacking on top of each other to open and close, providing easy access to glass surfaces.
2. Wipeability: The design allows easy access to both inner and outer surfaces of the panels, simplifying cleaning. When fully opened, both surfaces can be effortlessly wiped.
3. Materials: Constructed with tempered or laminated glass. Frames and rail systems are typically made from aluminum or stainless steel for durability.
4. Automation: Operable with electric motors, controlled via remote or smart home systems. Manual models are available, though motorized systems are more common.
5. Insulation: Provides thermal, sound, and water insulation, supported by high-quality seals and frame systems between glass panels.
6. Safety: Equipped with safety locks and optional child locks. Tempered glass enhances overall safety.

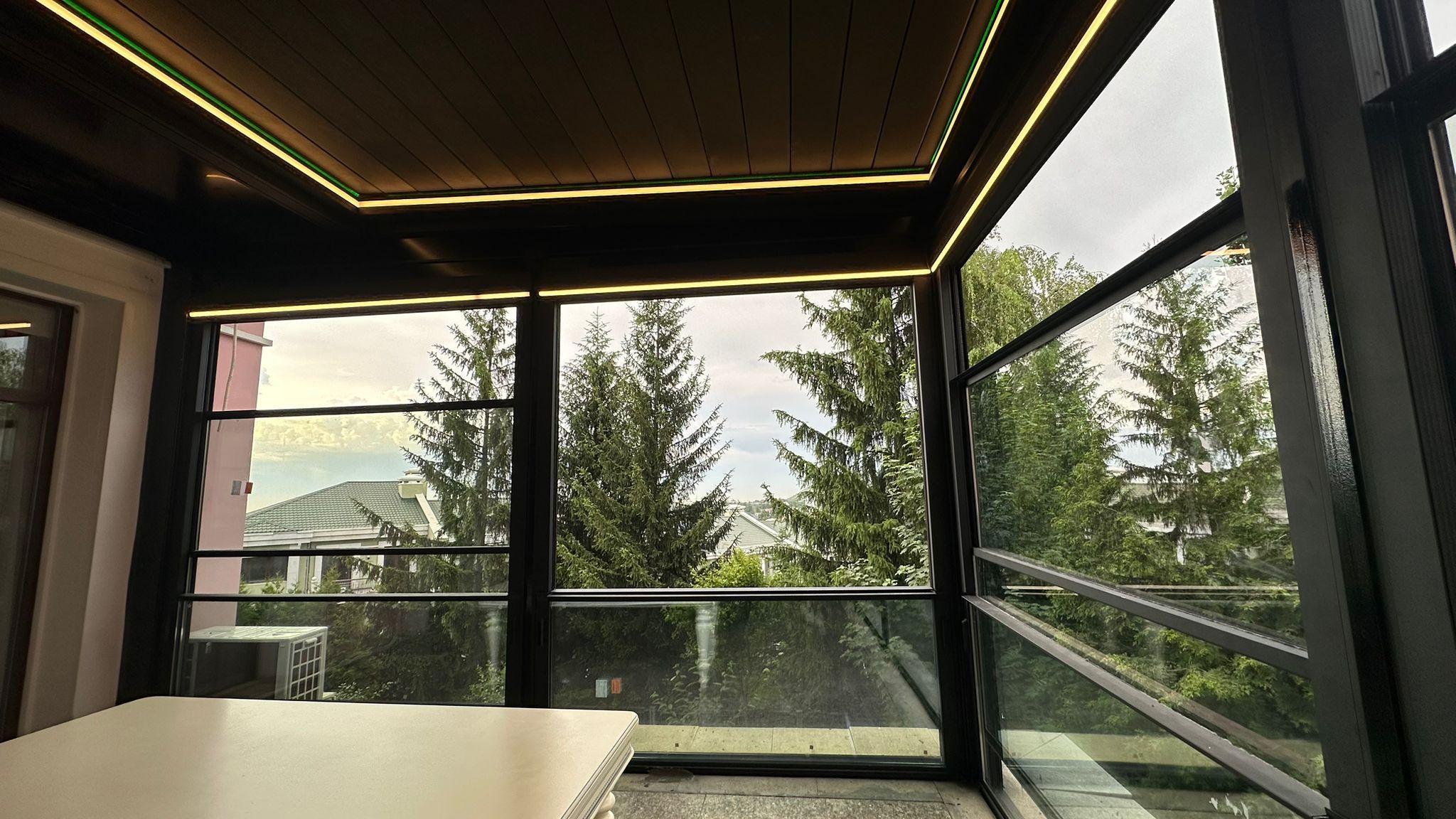

7. Aesthetic Appeal: Features a decorative hidden top LED lamp for a sleek, modern look.
8. Additional Features:
   • Movable upper handrail profile prevents hand jamming.
   • High-density brush seals and gaskets ensure full protection in rainy conditions.
   • Wing profiles include double seals for enhanced insulation and isolation.
   • Operable with chain, belt, or shaft mechanisms.

Applications

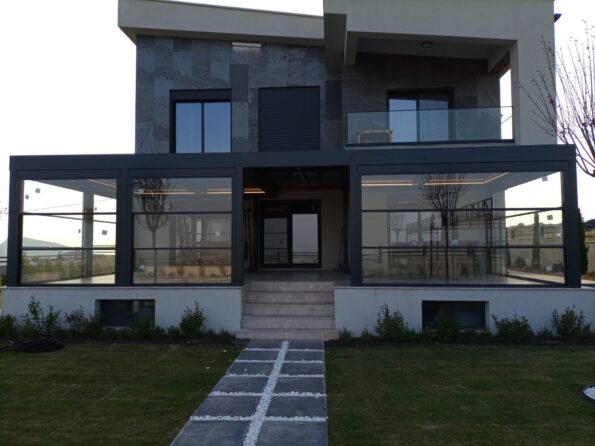

• Residential: Ideal for balconies, terraces, verandas, and winter gardens.
• Restaurants and Cafes: Perfect for enclosing outdoor seating areas and opening them as needed.
• Offices and Commercial Spaces: Integrates indoor spaces with outdoor environments while maximizing natural light.
• Hotels and Resorts: Enables guests to use outdoor areas comfortably, with the flexibility to enclose spaces based on weather conditions.
• Balcony Railings: Can be cleaned in the handrail position and used as a balcony railing system.

Technical Specifications

• Profile Raw Material: AA 6063 (AlMgSi 0.5 F22), EN 573-3
• Mechanical Properties (EN 755-2):
  • Density: 2.71 g/cm³
  • Elasticity Modulus: 7000 kN/cm²
  • Yield Strength: 215 N/mm²
  • Flow Strength: 160 N/mm²
  • Elongation: Minimum 6%
  • Hardness: 70 HRB
• Anodic Oxidation (Eloksal):
  • Standard: DIN 17611, EN 12371-1 (QUALANOD)
  • Coating Thickness: 10-15 microns
  • Immersion and Coloring Standard: DIN 50018
  • Sealing Standards: EN 12373-5, ISO 3210
• Powder Coating Standards:
  • Thickness: Minimum 60 microns
  • Adhesion: EN ISO 2409
  • Elasticity: EN ISO 1519
  • Deformation: EN ISO 6272-1
  • Hardness: EN ISO 2815
• Surface Appearance: No visible defects such as scratches, roughness, swelling, or stains upon visual inspection.
• Gaskets:
  • Raw Material: EPDM for all gaskets, silicone for joint seals.
  • Measurement Tolerances Standard: DIN ISO 3302-1/E2
  • Quality Control Standard: RAL-GZ 716
• Profile Design and Manufacturing Tolerances: EN 12020-2
• Additional Features:
  • Transom reinforced with steel and supported by sheet metal.
  • No notching or 45-degree cuts in the system to support guillotine production.

Additional Advantages

• Configurable with existing profiles for double or triple wipeable panels or standard guillotine systems, with reverse stacking capability.
• Operates via an electronic control switch; the motor does not engage when the wing is open.
• Designed for safety, cleanable only in the handrail position.
• Movable upper handrail profile prevents hand jamming.
• High-density brush seals and gaskets provide complete protection in rainy weather.

Why Choose Our Guillotine Wipeable Glass Systems?
When crafted with high-quality materials and thoughtful design, our guillotine wipeable glass systems deliver both functionality and aesthetic excellence. Built to withstand various weather conditions, these systems enable users to maximize the use of outdoor spaces efficiently and comfortably. The ease of cleaning and maintenance ensures long-lasting, hygienic performance, making them a superior choice for modern living and commercial spaces.
